Ethernet Switches (Copper)
HS-5GE
Gigabit switch — 5 fiber
5 × 10/100/1000Base-T RJ45IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.1q / 802.1p / 802.1d2K1-Year Warranty

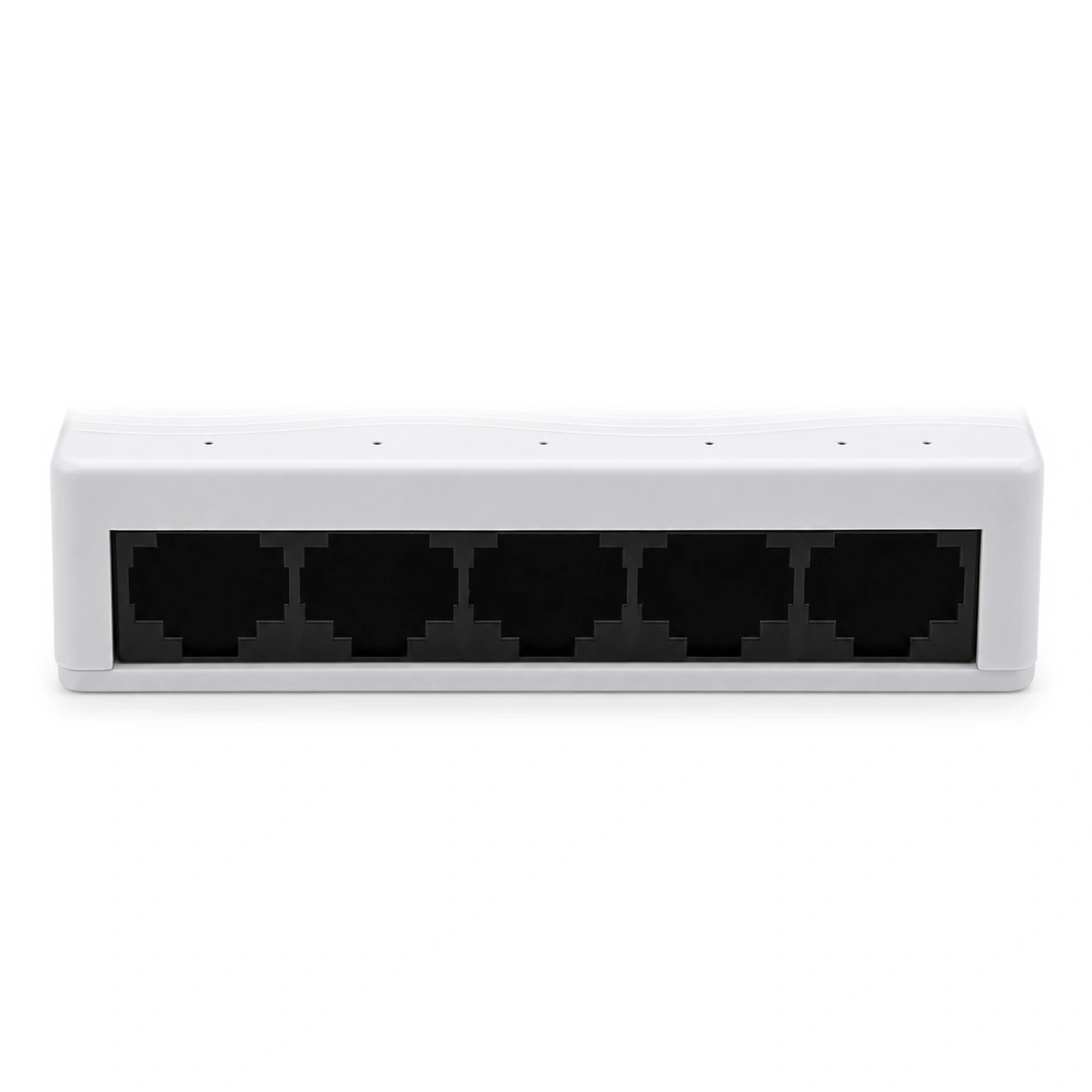

- 5 × 10/100/1000M RJ45, wire speed
- One-key VLAN isolation, anti-loop
- 4 kV port lightning protection
- Fanless, ≤ 2 W full load
- Palm-size 87.6 × 79.2 mm footprint
Product Overview
A palm-size all-gigabit switch for desks and wall boxes: five 10/100/1000M ports at wire speed, one-key VLAN isolation against loops, and 4 kV port surge protection. Zero configuration, 2 W max.
Technical Specifications
| Ports | 5 × 10/100/1000Base-T RJ45 |
|---|---|
| Standards | IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.1q / 802.1p / 802.1d |
| MAC Address Table | 2K |
| Packet Buffer | 1 Mbit |
| Jumbo Frame | 9216 bytes |
| Backplane Bandwidth | 10 Gbps |
| Power Input | AC 100–240 V (DC 5–16 V wide input) |
| Power Consumption | 1.0–2.0 W |
| Certifications | CE, FCC, RoHS, CCC |
| Operating Temperature | -10 ~ +55 °C |
| Storage Temperature | -40 ~ +70 °C |
| Humidity | 5–90% non-condensing |
| Dimensions (L×W×H) | 87.6 × 79.2 × 26 mm |
| Weight | 0.2 kg |
| Housing | Metal, blue |
| Warranty | 1 year |
Ordering Information
| Model | Description |
|---|---|
| HS-5GE | 5-port gigabit, incl. 5 V 1 A adapter |
SC connector as default; FC/ST and other distances available on request. Power adapters: US plug default, EU/GB optional. SFP-slot models accept any MSA-compliant SFP module, including third-party brands (coding available on request).
Typical Applications
Enterprise & CampusCCTV & Security
FAQ
What is the HS-5GE designed for?

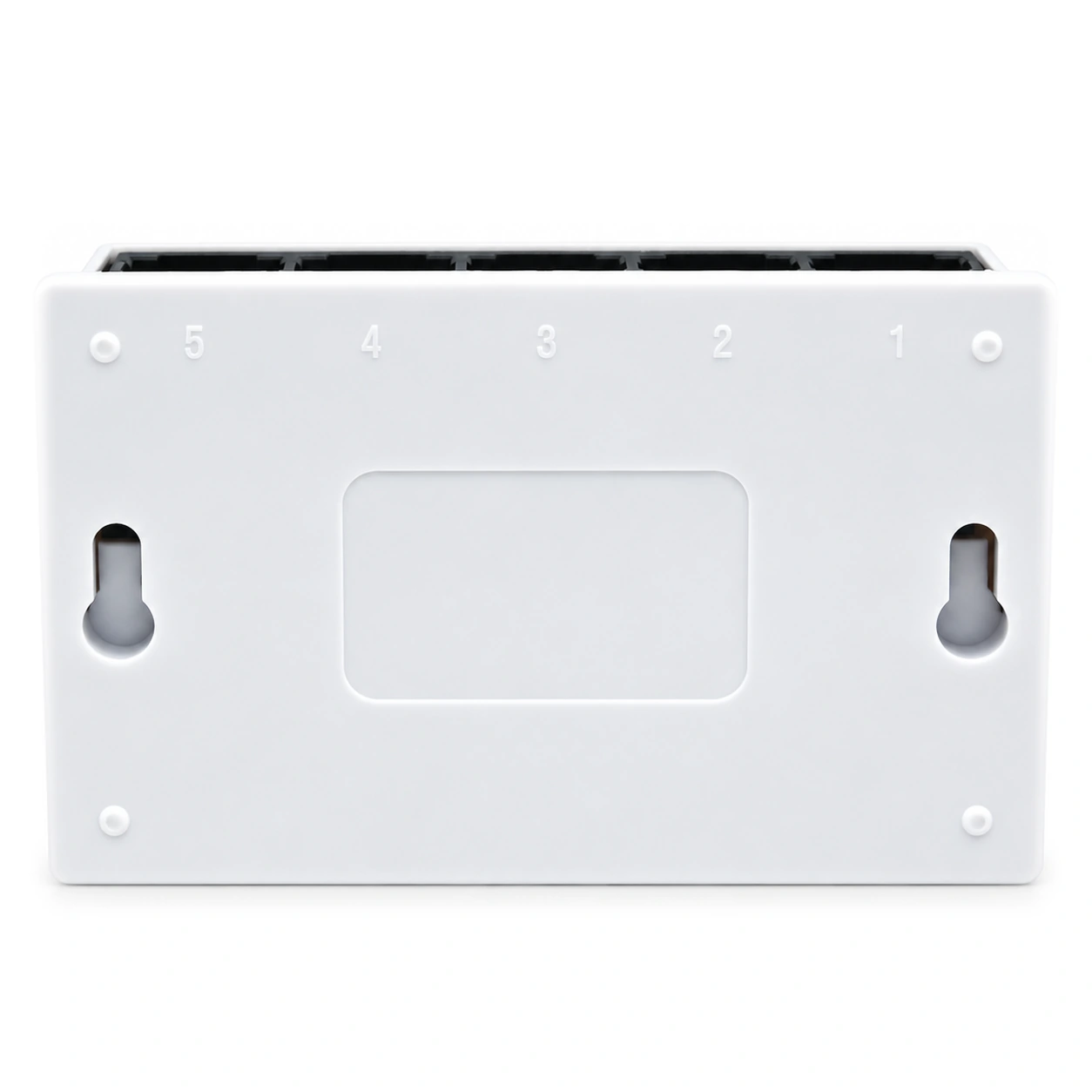

Desks and wall boxes: five all-gigabit RJ45 ports at wire speed in a palm-size 87.6 × 79.2 mm metal case. The one-key VLAN isolation switch separates guests or camera segments with a flick and guards against loops, while 4 kV per-port surge protection copes with long cable runs in buildings.
Do I need to configure anything?
No — it is a plug-and-play switch with auto-negotiation on every port. The only control is the VLAN isolation switch: off for a normal switch, on to isolate ports from each other, which also breaks accidental loops. With a 10 Gbps backplane, 9216-byte jumbo frames and a 2K MAC table, it needs no tuning for typical office loads.
How is it powered and how quiet is it?
Completely silent — there is no fan, and full-load consumption is only about 2 W. Power comes from the included 5 V 1 A adapter; the wide DC 5–16 V input also accepts other low-voltage sources in cabinets. The metal housing dissipates heat, operates from -10 to +55 °C, and the warranty period is 1 year.
