Ethernet Switches (Copper)

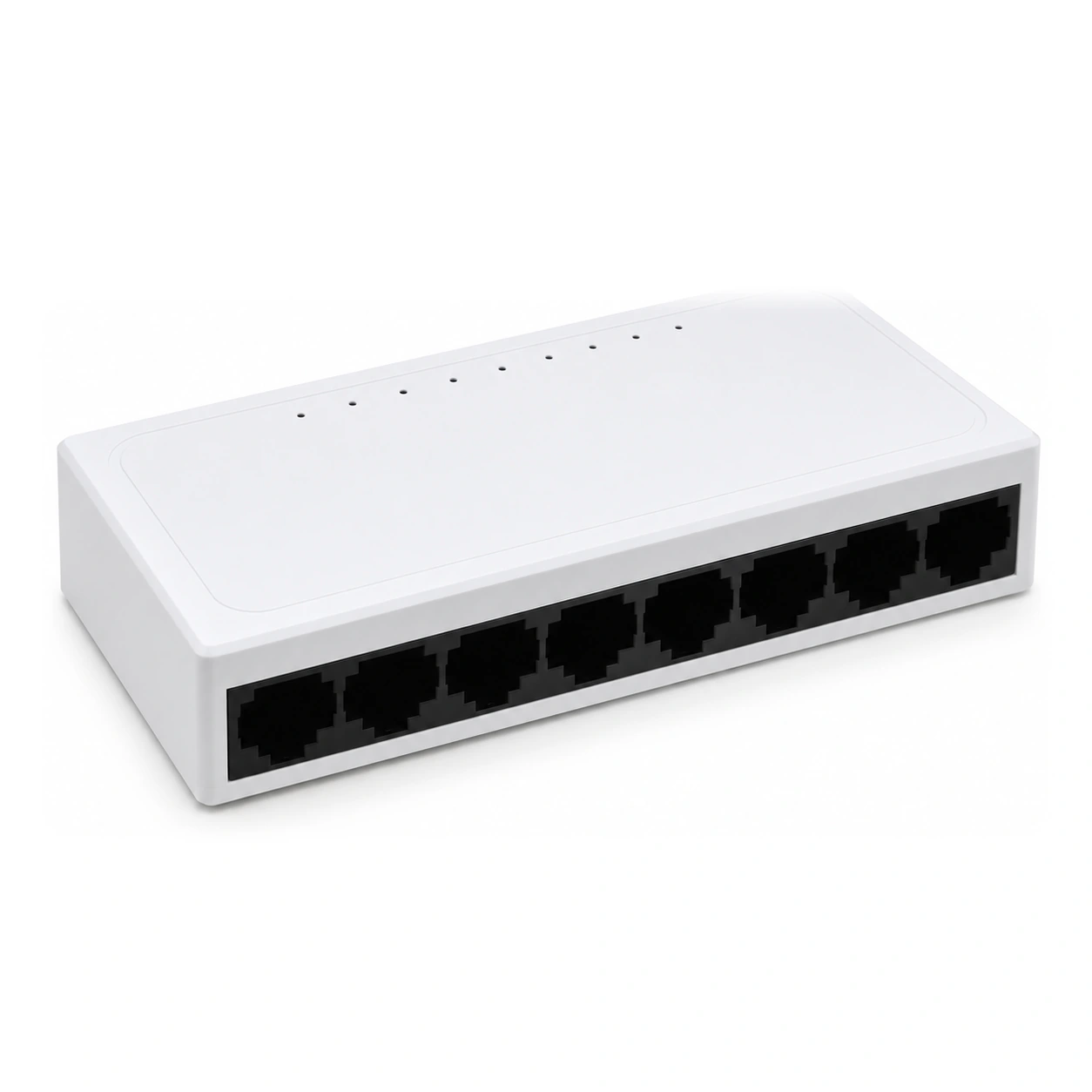

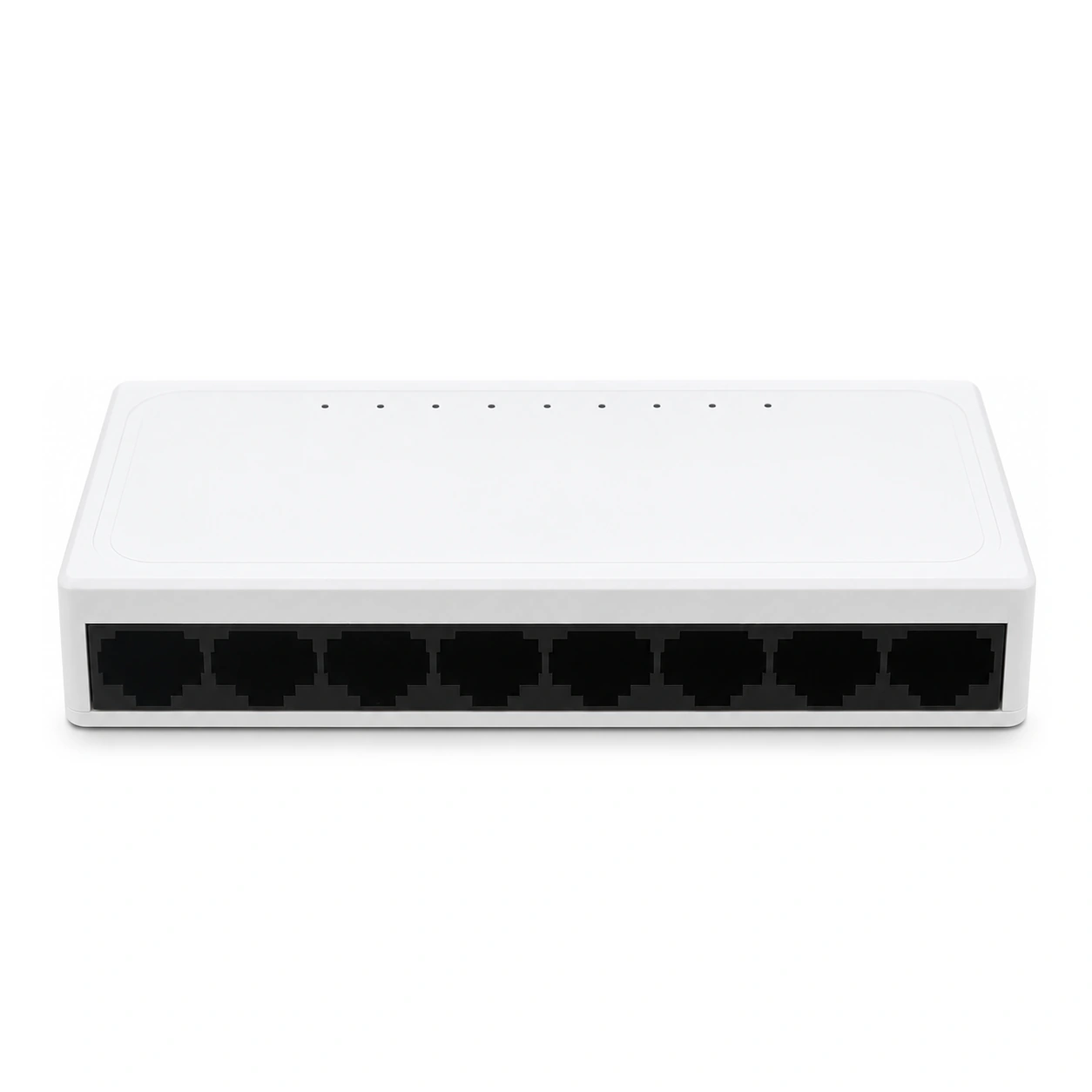

HS-8GE
Gigabit switch — 8 fiber
8 × 10/100/1000Base-T RJ45IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.1p / 802.1d8K1-Year Warranty
- 8 × 10/100/1000M RJ45, wire speed
- 8K MAC table, multicast, QoS
- 9.2K jumbo frames
- 4 kV port lightning protection
- Fanless, ≤ 2.5 W full load
Product Overview
The standard 8-port gigabit workgroup switch: full wire-speed forwarding, 8K MAC address table, multicast and QoS support plus 9.2K jumbo frames — smooth with IPTV and 4K camera streams. Metal housing, 5 V powering.
Technical Specifications
| Ports | 8 × 10/100/1000Base-T RJ45 |
|---|---|
| Standards | IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.1p / 802.1d |
| MAC Address Table | 8K |
| Packet Buffer | 1 Mbit |
| Jumbo Frame | 9216 bytes |
| Backplane Bandwidth | 10 Gbps |
| Power Input | AC 100–240 V (DC 5 V socket) |
| Power Consumption | 1.8–2.5 W |
| Certifications | CE, FCC, RoHS, CCC |
| Operating Temperature | -10 ~ +55 °C |
| Storage Temperature | -40 ~ +70 °C |
| Humidity | 5–90% non-condensing |
| Dimensions (L×W×H) | 152 × 83.5 × 30 mm |
| Weight | 0.3 kg |
| Housing | Metal, blue |
| Warranty | 1 year |
Ordering Information
| Model | Description |
|---|---|
| HS-8GE | 8-port gigabit, incl. 5 V 2 A adapter |
SC connector as default; FC/ST and other distances available on request. Power adapters: US plug default, EU/GB optional. SFP-slot models accept any MSA-compliant SFP module, including third-party brands (coding available on request).
Typical Applications
Enterprise & CampusCCTV & Security
FAQ
What distinguishes the HS-8GE from basic desktop switches?
It is built for media traffic: an 8K MAC table, full wire-speed forwarding on eight gigabit ports, multicast support and QoS prioritization keep IPTV and 4K camera streams smooth, and 9216-byte jumbo frames reduce overhead on storage or NVR links. Add 4 kV port lightning protection and a metal case, and it serves offices and surveillance rooms for years.
Is it suitable as a small NVR or IPTV switch?
Yes — multicast and QoS handle IPTV distribution and camera streams without flooding, and the 10 Gbps backplane switches all eight ports simultaneously at line rate. The 1 Mbit buffer absorbs bursts from multiple 4K cameras, and jumbo frame support up to 9216 bytes helps video servers and NAS traffic.
What comes in the box and how is it installed?
The switch ships with a 5 V 2 A power adapter and runs fanless at 1.8–2.5 W — silent on a desk or wall-mounted in a cabinet. The 152 × 83.5 × 30 mm blue metal housing shows PWR and per-port LINK/ACT LEDs, works from -10 to +55 °C, and is covered by a 1-year warranty.
