HS-1F2E
Fast Ethernet converter — 1 fiber + 2 copper
1 × 100Base-FX SC + 2 × 10/100Base-TX RJ45IEEE 802.3 / 802.3u / 802.3x1K1-Year Warranty

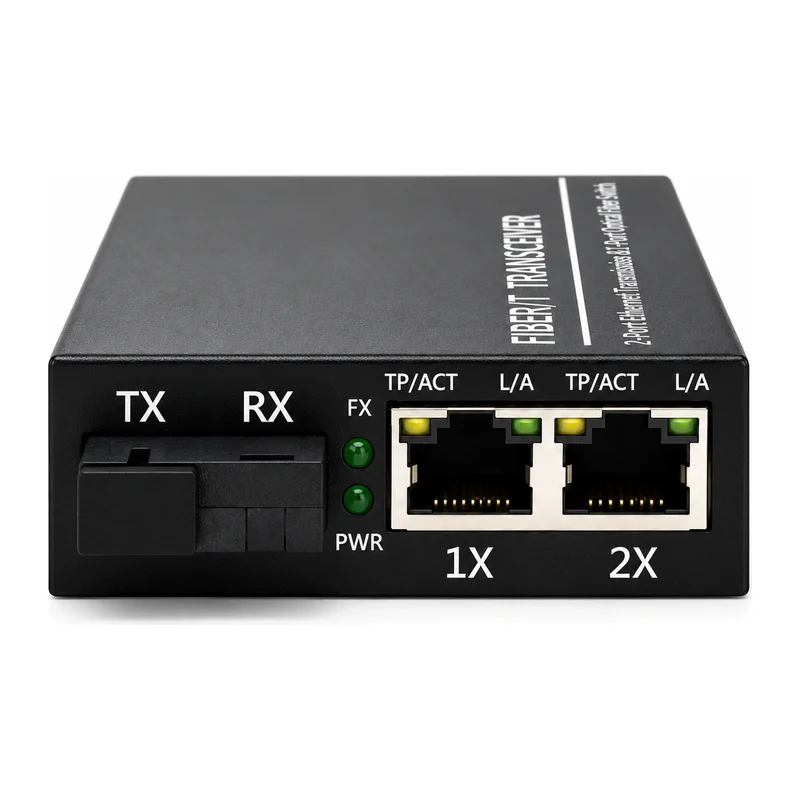

- 1 × 100Base-FX SC fiber ports + 2 × 10/100Base-TX RJ45
- Store-and-forward, full wire speed
- MDI/MDI-X auto-negotiation, plug and play
- Compact metal housing
- Multimode 550 m; single-mode 3–120 km (WDM options)
Product Overview
The HS-1F2E extends your LAN over fiber with 1 × SC fiber port + 2 × RJ45 — a Fast Ethernet solution for point-to-point fiber links between switches, routers and remote equipment. Store-and-forward switching, auto-negotiation and MDI/MDI-X keep installation plug-and-play; the metal housing mounts on walls or in cabinets. Multimode 550 m to single-mode 120 km optics available — send the distance and port count for an exact quote.
Technical Specifications
| Ports | 1 × 100Base-FX SC + 2 × 10/100Base-TX RJ45 |
|---|---|
| Standards | IEEE 802.3 / 802.3u / 802.3x |
| MAC Address Table | 1K |
| Jumbo Frame | 64–1518 bytes (no jumbo) |
| Packet Buffer | 2K |
| Backplane Bandwidth | 1 Gbps |
| Latency | < 150 μs |
| Wavelength | 850 / 1310 / 1550 nm |
| Transmission Distance | 550 m (MM) – 120 km (SM) |
| LED Indicators | PWR, FX, Link/Act, SPEED |

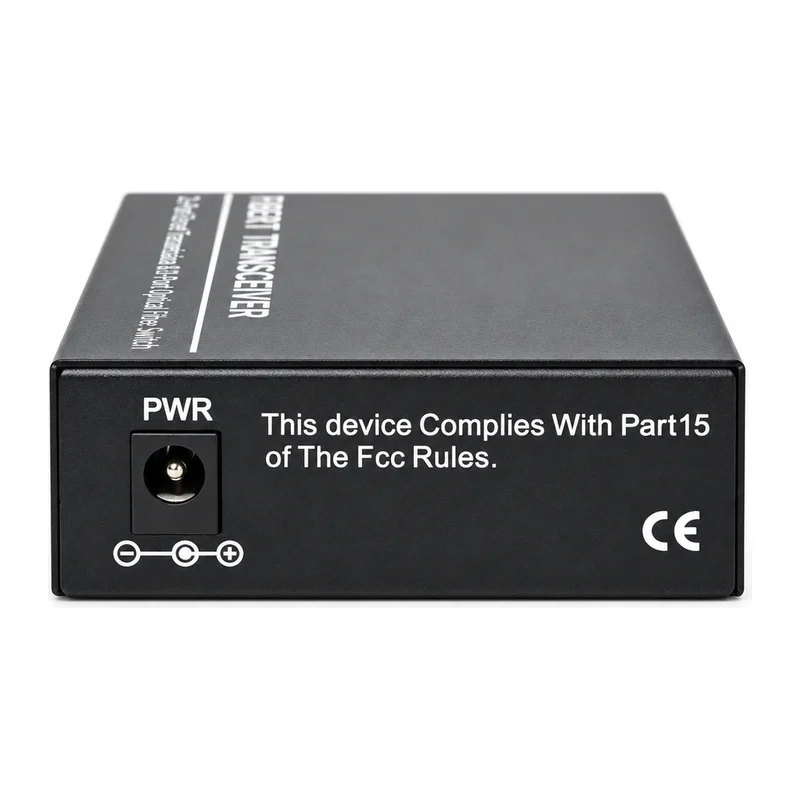

| Power Input | DC 5 V, 2 A |
| Power Consumption | ≤ 5 W |
| Certifications | CE, FCC, RoHS, CCC |
| Operating Temperature | 0 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 5–90% non-condensing |
| Dimensions (L×W×H) | 95 × 70 × 25 mm |
| Weight | 0.6 kg |
| Warranty | 1 year |
Ordering Information
| Model | Description |
|---|---|
| HS-1F2E-S | SC dual fiber — full distance coverage; WDM single-fiber and other options on request |
SC connector as default; FC/ST and other distances available on request. Power adapters: US plug default, EU/GB optional. SFP-slot models accept any MSA-compliant SFP module, including third-party brands (coding available on request).
