Fiber Media Converters
HS-1G1E-LFP
Gigabit converter — 1 fiber + 1 copper · link fault pass-through (LFP)
gigabit fiber link converterIEEE 802.3 / 802.3x / 802.3i4 Gbps1-Year Warranty
- gigabit fiber link converter
- Metal housing, store-and-forward
- Plug and play, no configuration
Product Overview

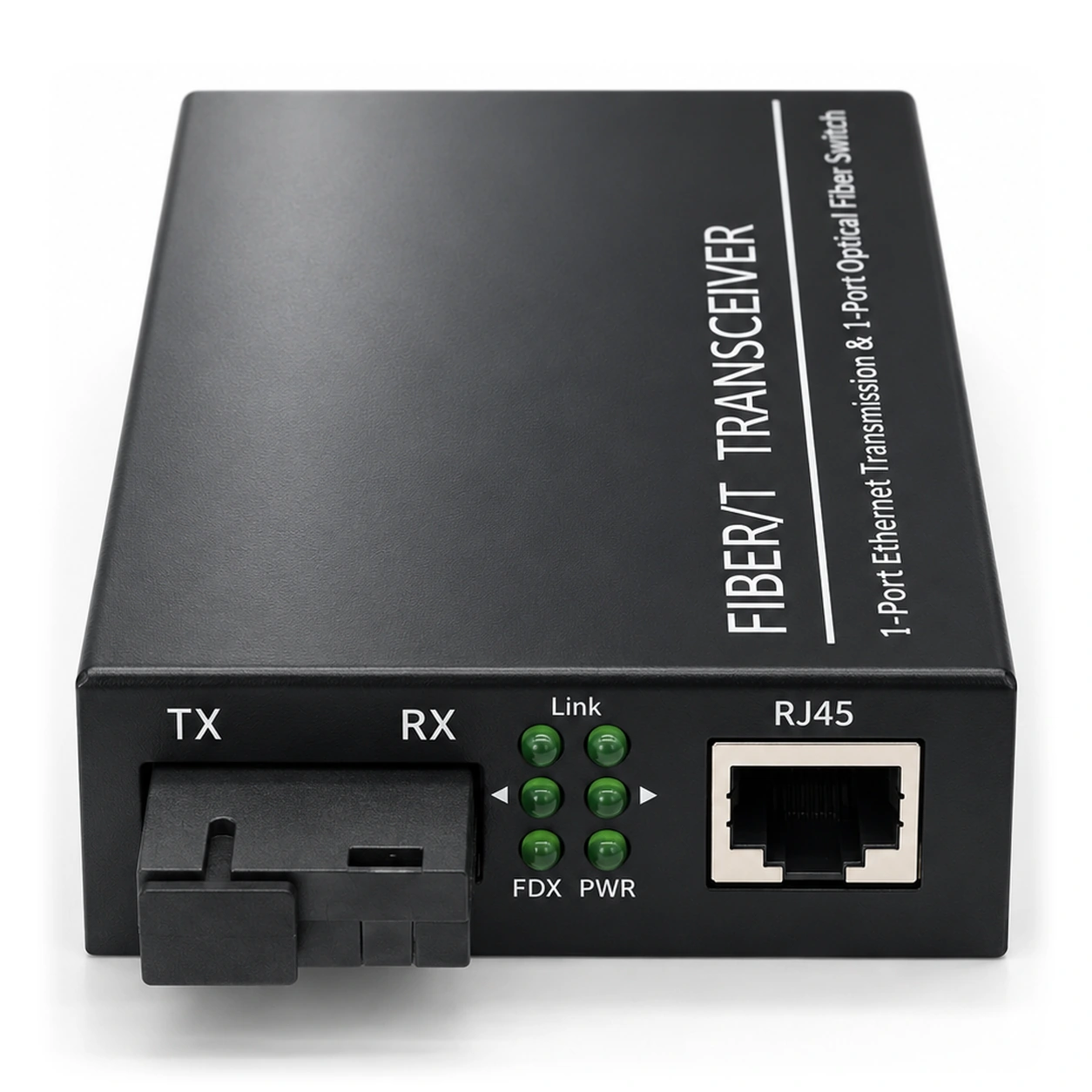

The HS-1G1E-LFP extends your LAN over fiber with 1 × SC fiber port + 1 × RJ45 — a gigabit solution for point-to-point fiber links between switches, routers and remote equipment. Store-and-forward switching, auto-negotiation and MDI/MDI-X keep installation plug-and-play; the metal housing mounts on walls or in cabinets. Link fault pass-through (LFP) propagates a fiber break to the copper side so both ends alarm and fail over. Multimode 550 m to single-mode 120 km optics available — send the distance and port count for an exact quote.
Technical Specifications
| Ports | gigabit fiber link converter |
|---|---|
| Standards | IEEE 802.3 / 802.3x / 802.3i |
| Backplane Bandwidth | 4 Gbps |
| Throughput | 14.388 Mpps |
| MAC Address Table | 2K |
| Packet Buffer | 1M |
| LED Indicators | PWR, FX/Link, TX/Link, FDX, 1000M, 100M |
| Jumbo Frame | 64–9216 bytes |
| Transmission Distance | 10BASE-T: Cat3,4,5 UTP(≤150 m) |
| Power Input | 5 V 1 A – 5 V 2 A |
| Dimensions (L×W×H) | 95 × 70 × 25 mm |
| Weight | 0.6 kg |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -40 ~ 85 °C |
| Humidity | 5% ~ 90% (non-condensing) |
| Warranty | 1 year |
| Certifications | CE, FCC, RoHS |
