Name: HS-M824GP-4G4SFP
Brand: Huasnet
SKU: HS-M824GP-4G4SFP

HS-M824GP-4G4SFP

Gigabit PoE converter — 4 fiber + 4 PoE copper · SFP slot version

28 × 10/100/1000Base-T RJ45 Auto-MDI/MDI-X (24 × PoE+ ports 1–24) + 4 × 100/1000Base-X SFP (combo with RJ45 25–28), dual-mode with DDM1 × RS232-to-RJ45 serial port (115200, 8, N, 1)Store-and-Forward1-Year Warranty

28 × 10/100/1000Base-T (24 × PoE+) + 4 × GE SFP (combo with RJ45 25–28)

L2 Web Smart managed — Web, Telnet, CLI and SNMP

VLAN segmentation and QoS traffic prioritization

Loop protection (STP/RSTP/MSTP) and 802.1X access control

PoE budget 370 W with per-port scheduling and auto-restart

Product Overview

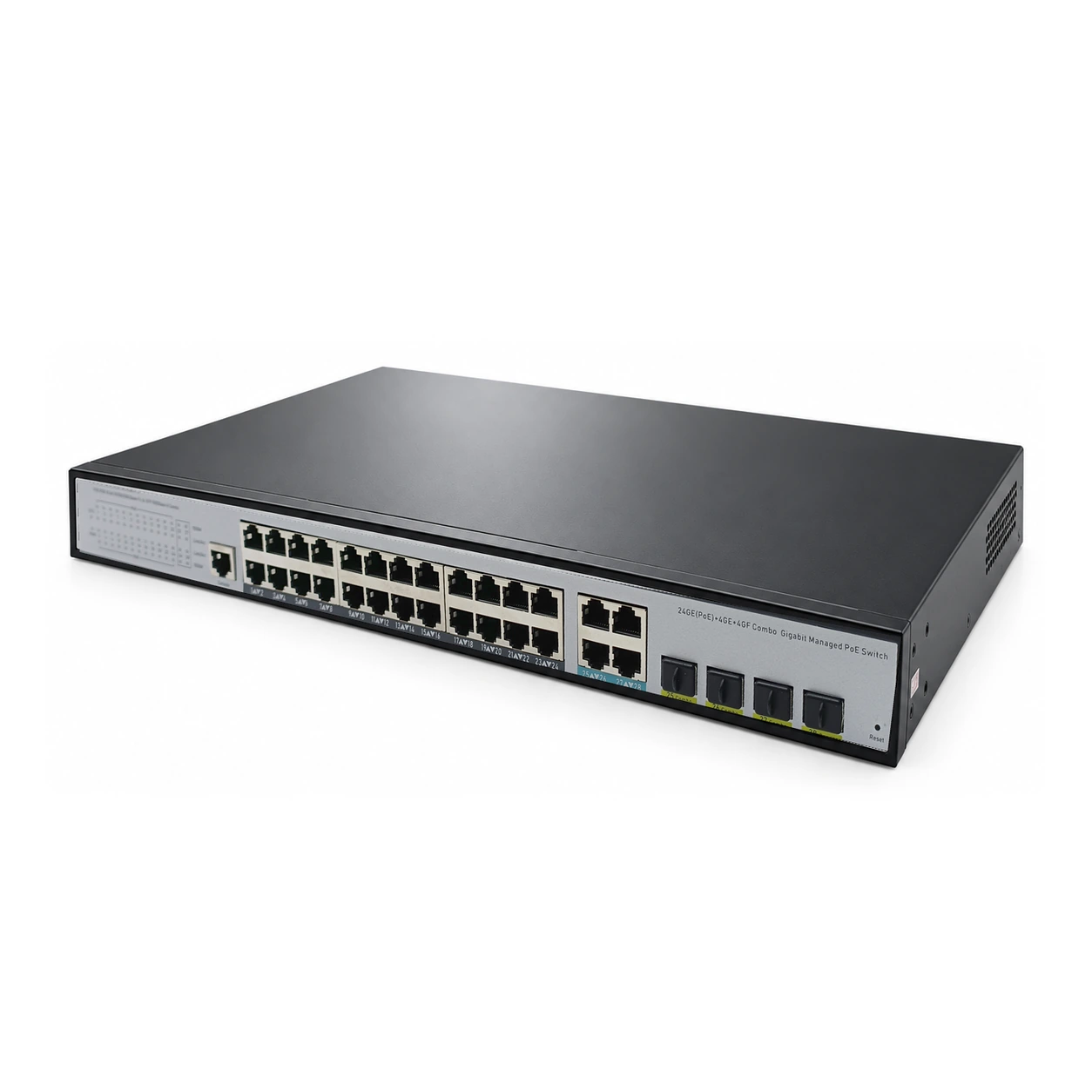

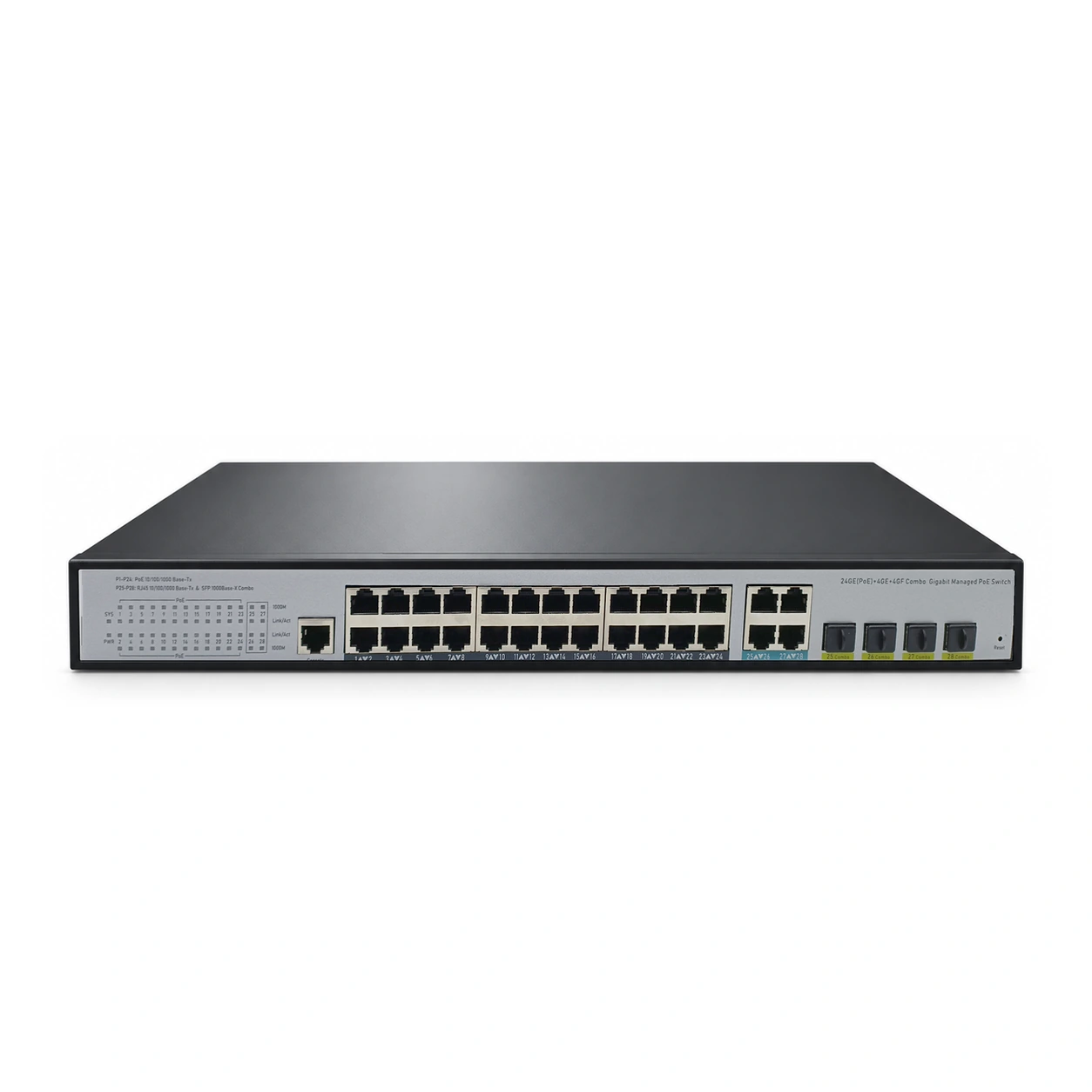

Enterprise managed gigabit switch built for ISP and campus cores: 28 × 10/100/1000Base-T (24 × PoE+) + 4 × GE SFP (combo with RJ45 25–28). L2 Web Smart software with VLAN, QoS, loop protection and SNMP monitoring. Full PoE management: per-port scheduling, power/current display and automatic device restart. Rack-mount 1U metal chassis.

Technical Specifications

Ports	28 × 10/100/1000Base-T RJ45 Auto-MDI/MDI-X (24 × PoE+ ports 1–24) + 4 × 100/1000Base-X SFP (combo with RJ45 25–28), dual-mode with DDM
Console Port	1 × RS232-to-RJ45 serial port (115200, 8, N, 1)
Architecture	Store-and-Forward
Switching Capacity	56 Gbps / non-blocking
Throughput	41.67 Mpps @ 64 bytes
MAC Address Table	8K entries
Packet Buffer	4.1 Mbit shared data buffer
Jumbo Frame	10240 bytes
Flow Control	IEEE 802.3x pause frame (full-duplex); back pressure (half-duplex)
VLAN	802.1Q tagged VLAN up to 256 groups (4094 IDs); voice / protocol / private VLAN
Spanning Tree	STP (802.1D) / RSTP (802.1w) / MSTP (802.1s)
Link Aggregation	IEEE 802.3ad LACP and static trunk, 8 groups × 8 ports
Security	802.1X port-based auth, RADIUS / TACACS+ , IPv4/IPv6 IP- and MAC-based ACL
QoS	8 queues (WRR), classification by port / 802.1p / DSCP / ACL, rate limit, statistics, mirroring
PoE Standard	IEEE 802.3af/at PSE, end-span, per port 52 V DC / 30.8 W max, pins 1/2(+), 3/6(–)
PoE Power Budget	370 W PoE power budget
PoE Management	Per-port PoE scheduling, power/current display, dead-device auto-restart, IP-binding restart
Management	Web Smart, Telnet, SNMP v1/v2c/v3, HTTP/TFTP firmware upgrade, remote/local syslog
Reset Button	< 5 s: system reboot; > 5 s: factory default
LED Indicators	PWR, SYS, LNK/ACT, PoE-in-Use
Power Input	100–240 V AC, 50/60 Hz auto-sensing
ESD Protection	Contact discharge 4 kV DC; air discharge 8 kV DC
enclosure	Metal
Dimensions (L×W×H)	440 × 300 × 44.5 mm (1U)
Warranty	1 year
Backplane Bandwidth	56 Gbps
Certifications	CE, FCC, RoHS

Ordering Information

Model	Description
HS-M824GP-4G4SFP	L2+/L3 managed — full datasheet and price on request

SC connector as default; FC/ST and other distances available on request. Power adapters: US plug default, EU/GB optional. SFP-slot models accept any MSA-compliant SFP module, including third-party brands (coding available on request).
