Fiber Optic Switches
HS-2G16E-F
Gigabit converter — 2 fiber + 16 copper · SFP slot version
2 × 1000Base-X fiber + 16 × 10/100/1000Base-T RJ45IEEE 802.3 / 802.3x / 802.3i32 Gbps1-Year Warranty
- 2 × 1000Base-X fiber + 16 × 10/100/1000Base-T RJ45
- Metal housing, store-and-forward
- Plug and play, no configuration
Product Overview

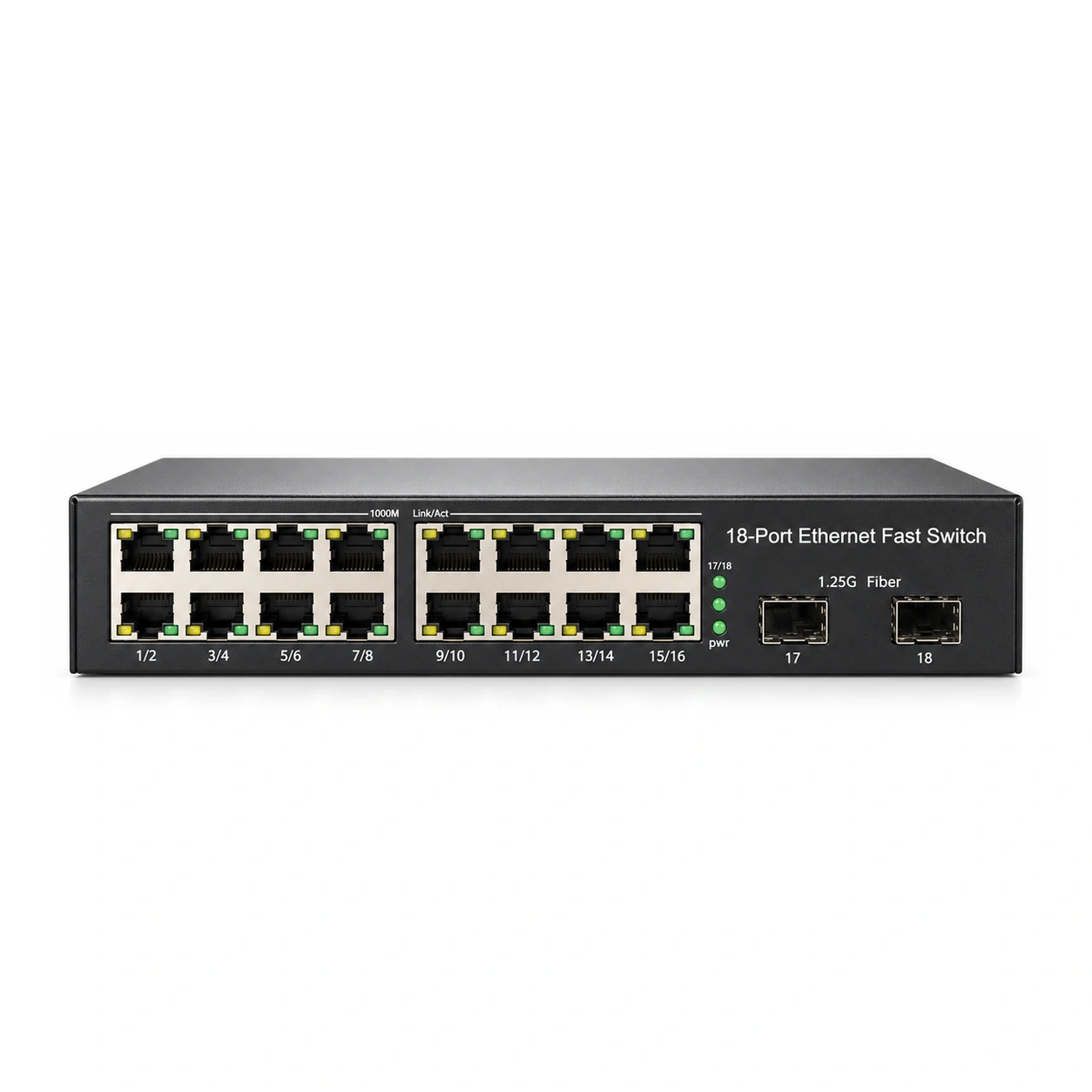

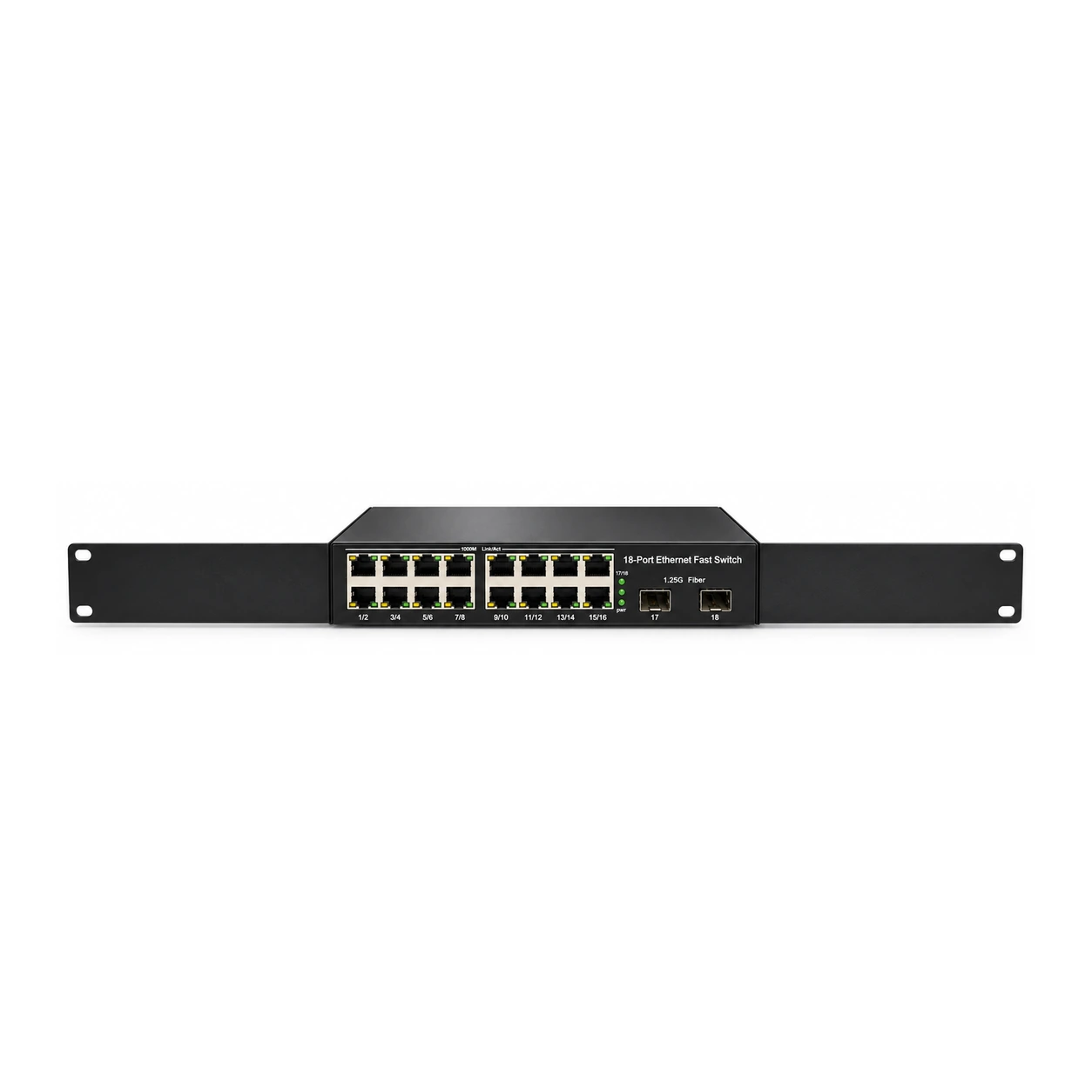

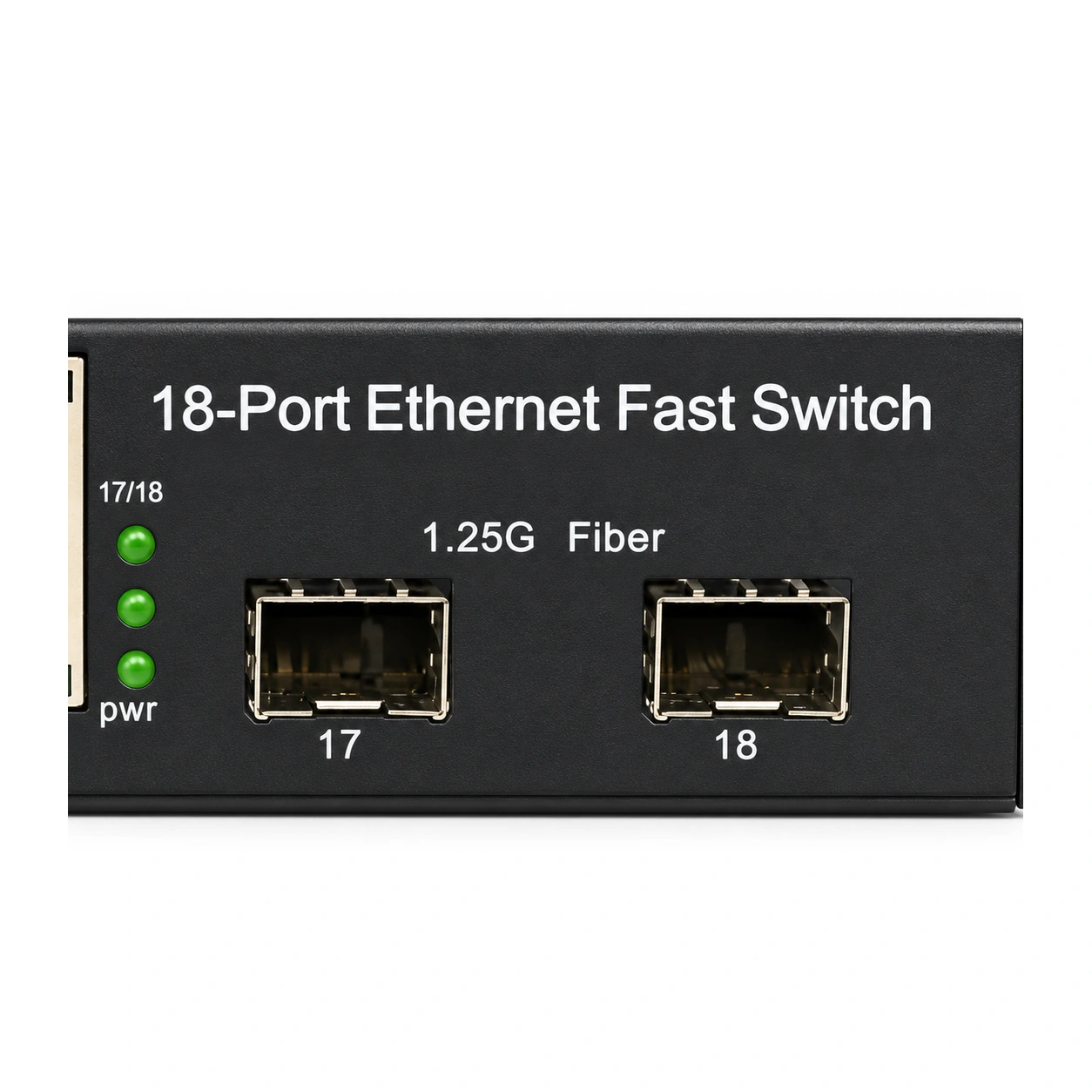

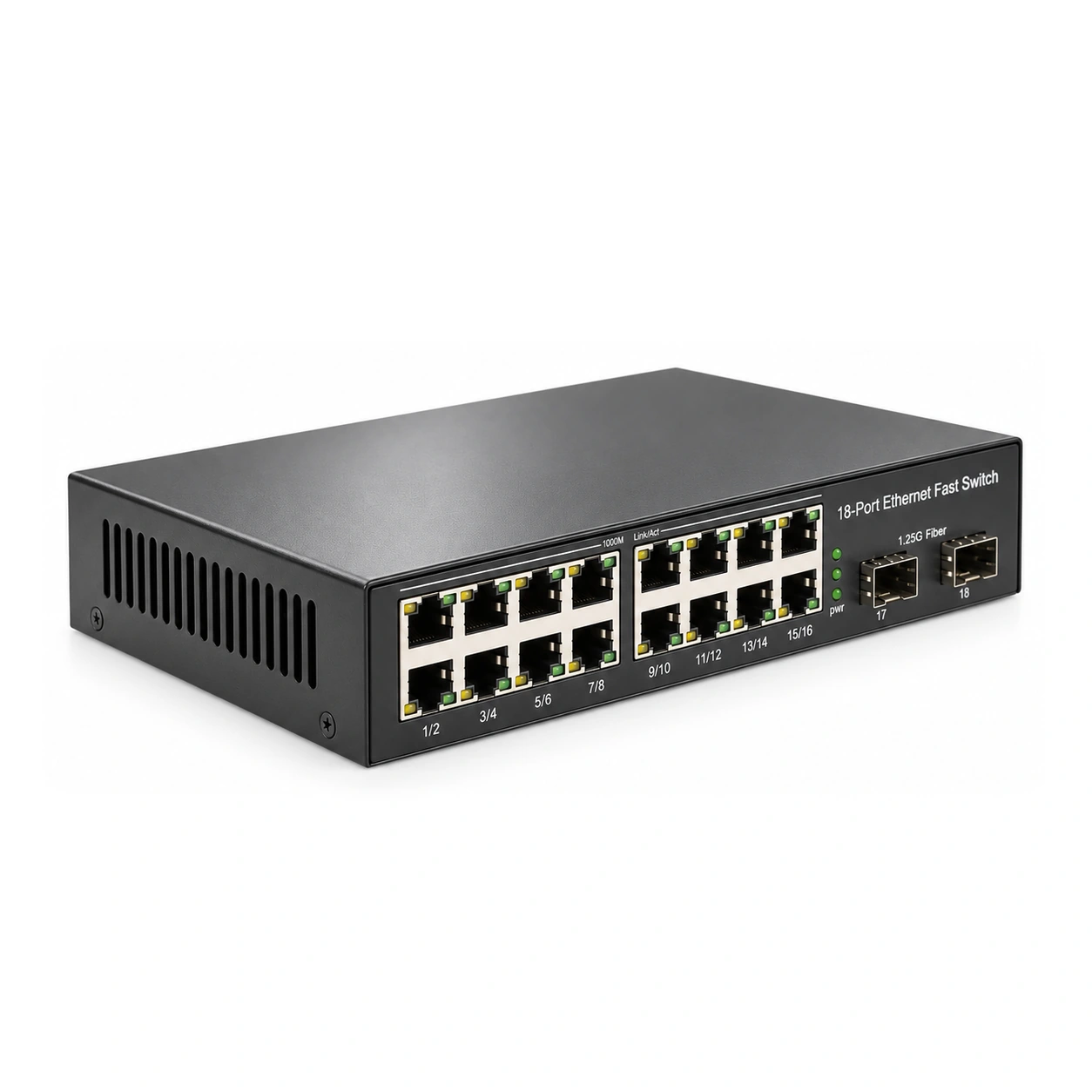

The HS-2G16E-F extends your LAN over fiber with 2 × SFP slots (any 100/1000 MSA module) + 16 × RJ45 — a gigabit solution for point-to-point fiber links between switches, routers and remote equipment. Store-and-forward switching, auto-negotiation and MDI/MDI-X keep installation plug-and-play; the metal housing mounts on walls or in cabinets. Multimode 550 m to single-mode 120 km optics available — send the distance and port count for an exact quote.
Technical Specifications

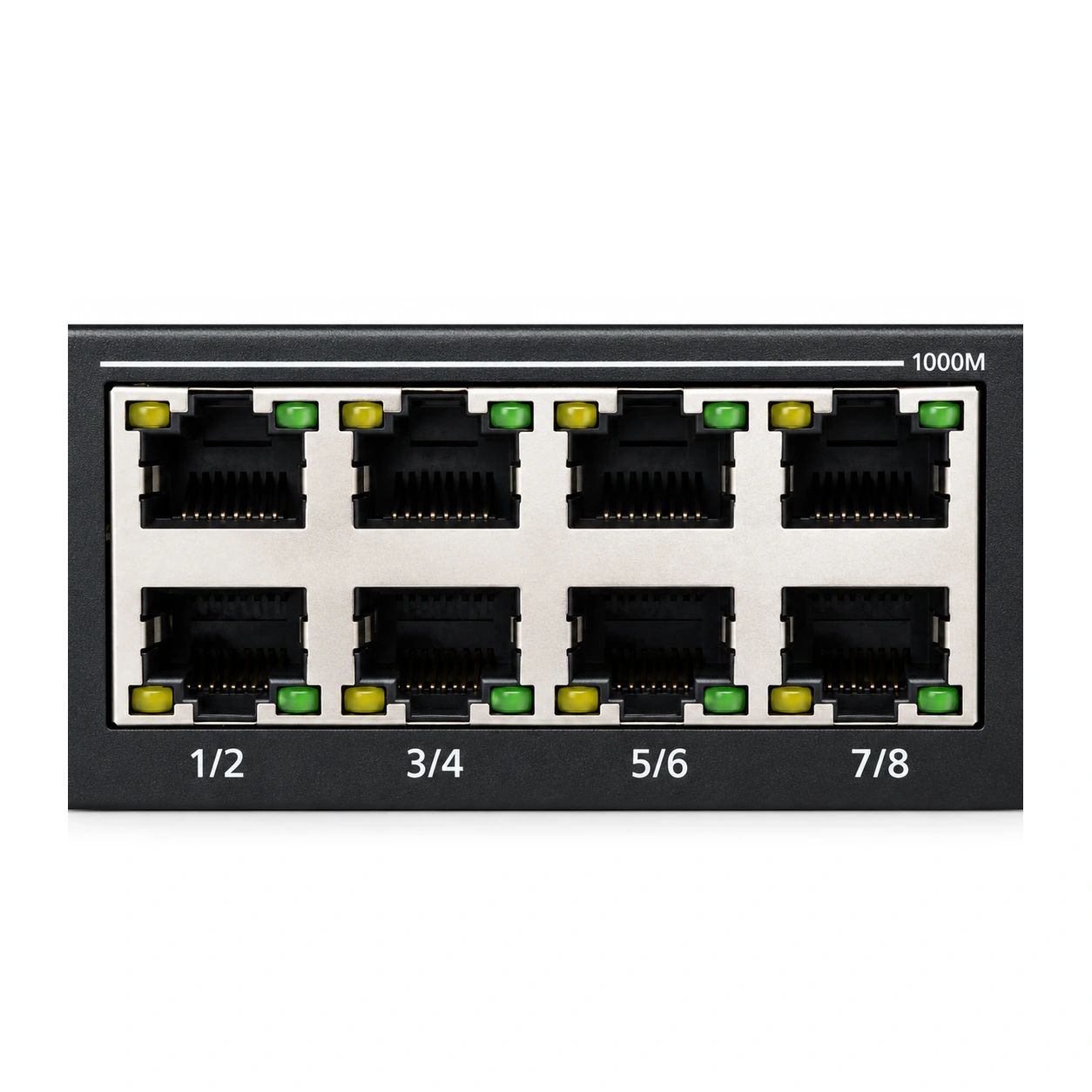

| Ports | 2 × 1000Base-X fiber + 16 × 10/100/1000Base-T RJ45 |
|---|---|
| Standards | IEEE 802.3 / 802.3x / 802.3i |
| Backplane Bandwidth | 32 Gbps |
| Throughput | 14.388 Mpps |
| MAC Address Table | 2K |
| Packet Buffer | 1M |
| LED Indicators | PWR, FX/Link, TX/Link, 1000M, 100M |
| Jumbo Frame | 64–9216 bytes |
| Transmission Distance | 10BASE-T: Cat3,4,5 UTP(≤150 m) |
| Power Input | 12 V 1 A – 12 V 2 A |
| Dimensions (L×W×H) | 220 × 125 × 38 mm |
| Weight | 1.0 kg |
| Operating Temperature | -20 ~ 80 °C |
| Storage Temperature | -40 ~ 85 °C |
| Humidity | 5% ~ 90% (non-condensing) |
| Warranty | 1 year |
| Certifications | CE, FCC, RoHS |
